LJN9400Z Side Dump Semi-trailer
Bulk cargo and equipment transport. Select for cargo dimensions, loading method and required capacity.
1 / 1LJN9400Z Side Dump Semi-trailer
Configuration inquiry
LJN9400Z Side Dump Semi-trailer
Find the equipment and configuration for your work and transport requirements.
- Compare configurations for trailers
- Published specifications for configuration comparison
- Confirm engine and emission options for the destination
- Equipment selection, quotation and export inquiries
- Length options
- 13000 / 12500 / 12000 mm
- Width options
- 2500 / 2550 mm
- Height options
- 2500 / 2700 / 2900 / 3100 / 3300 / 3500 mm
- Total mass
- 40000 kg
- Rated load options
- 32000 / 32200 / 32500 kg
Technical specifications
- Length options
- 13000 / 12500 / 12000 mm
- Width options
- 2500 / 2550 mm
- Height options
- 2500 / 2700 / 2900 / 3100 / 3300 / 3500 mm
- Total mass
- 40000 kg
- Rated load options
- 32000 / 32200 / 32500 kg
- Axles
- 3
- Wheelbase options
- 6800 / 6700 / 6500 / 6200 + 1310 + 1310 mm
- Tyre options
- 11.00R20 12PR / 12R22.5 12PR
- Steel plate notation (brochure)
- -/13/13/13; -/10/10/10; -/8/8/8; -/4/4/4
- Unloading
- Side discharge

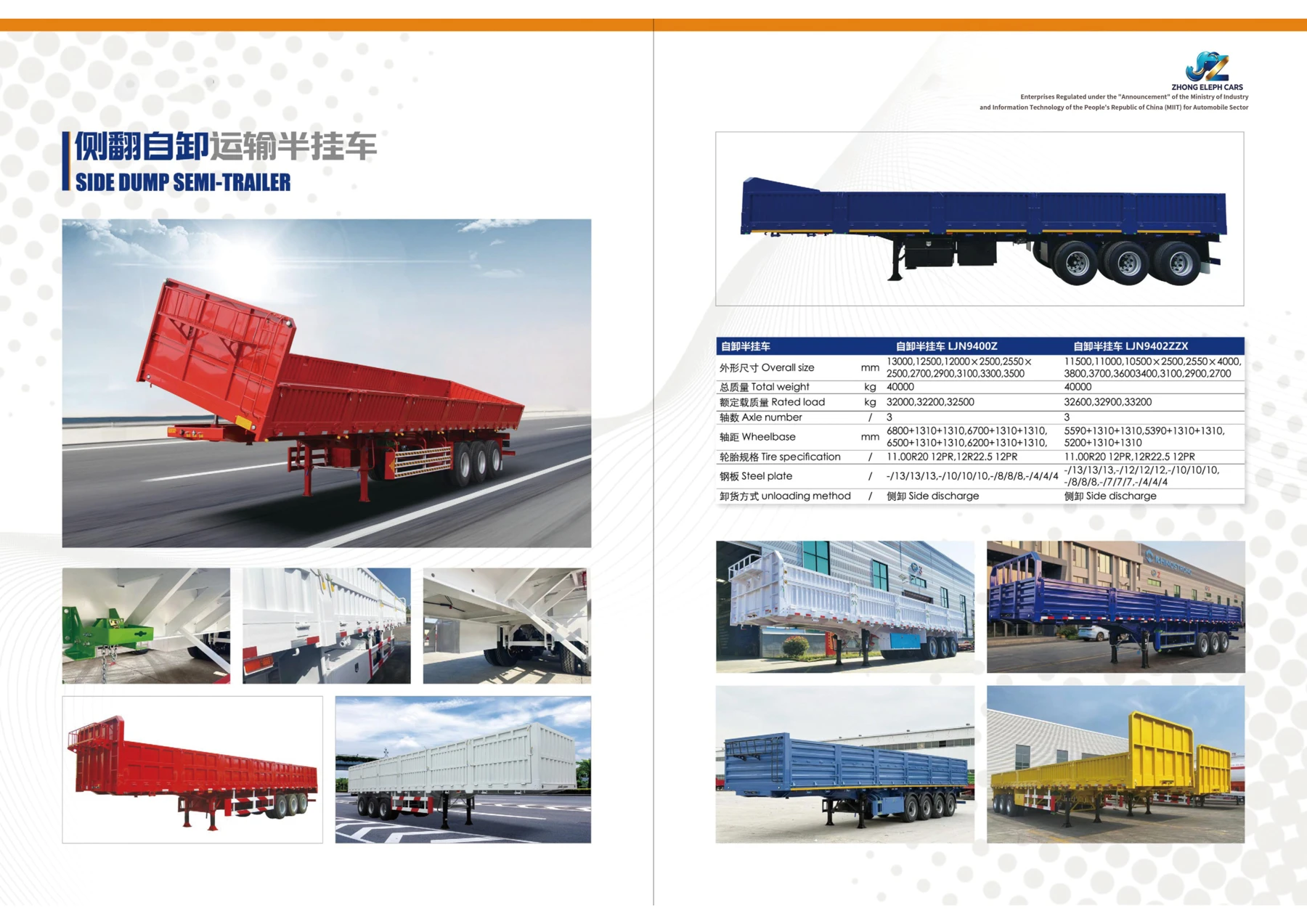

Published brochure options; final specifications are confirmed in the quotation.View brochure · P20
Applications & configuration support
Configuration options
Match the brochure options to your destination, load and working conditions.
Export planning
Discuss shipping methods, destination ports and required documents with sales.
