Sanitation vehicles

Choose sanitation vehicles around the application, operating conditions and required configuration.

1 / 9

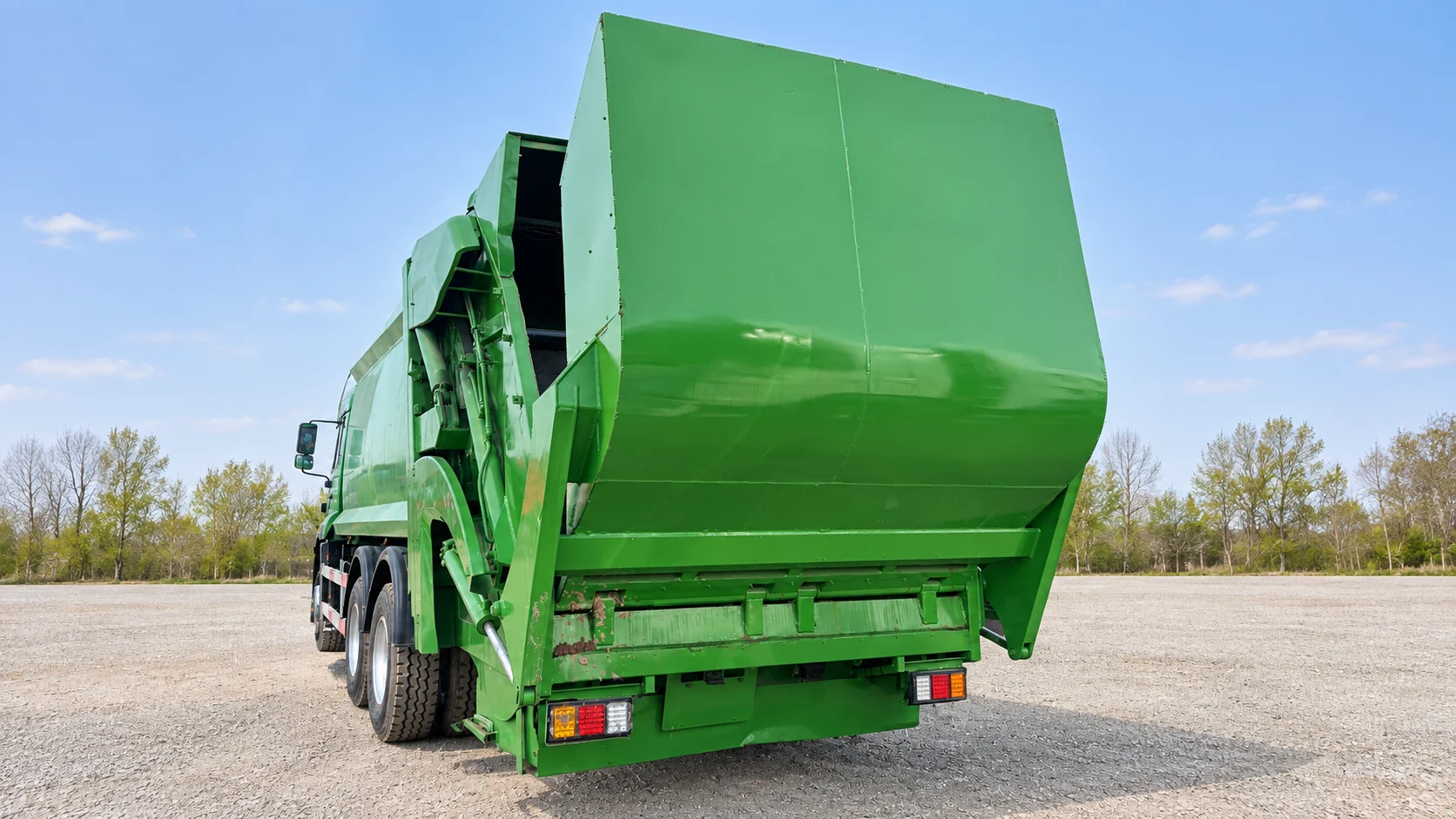

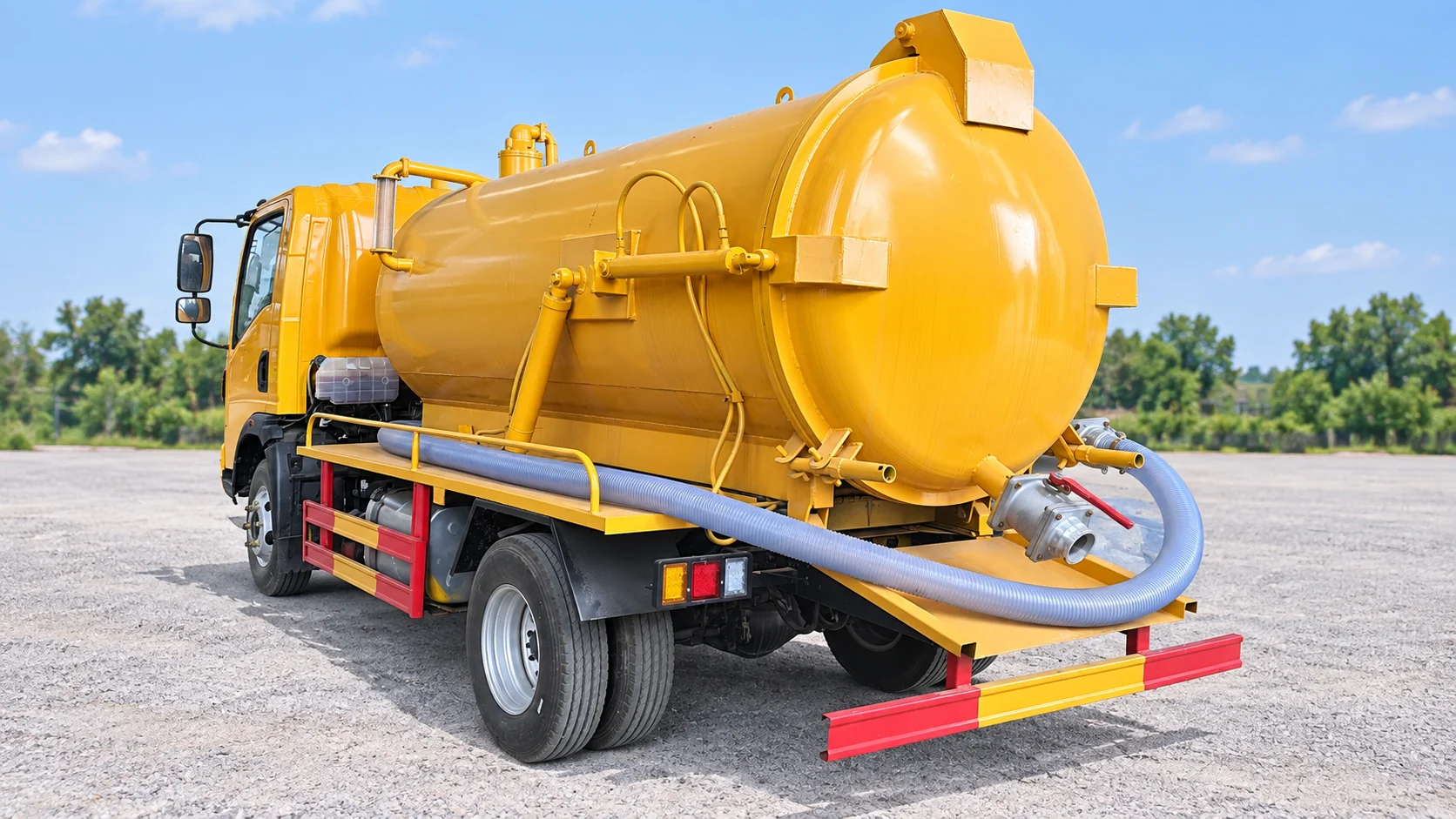

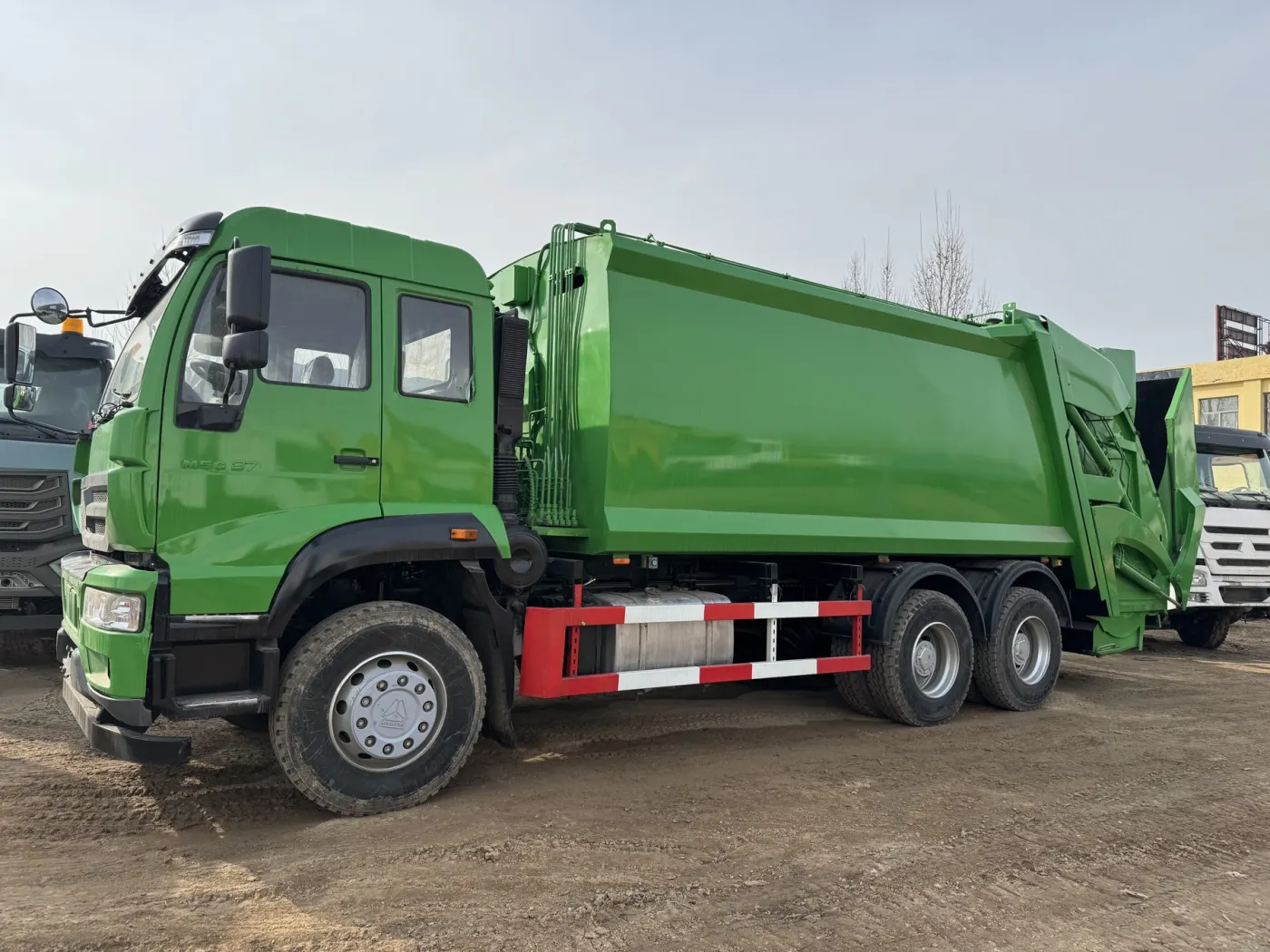

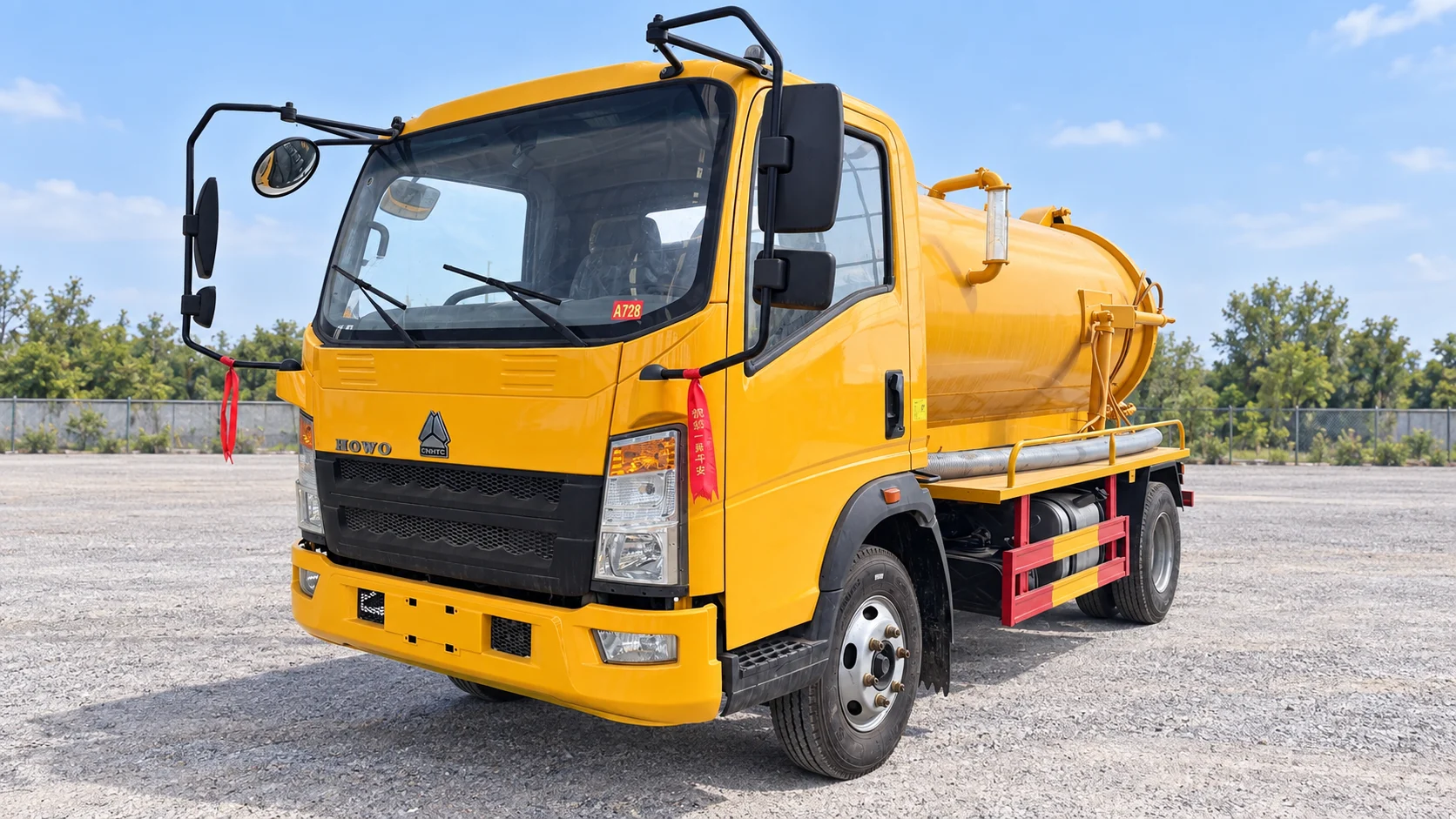

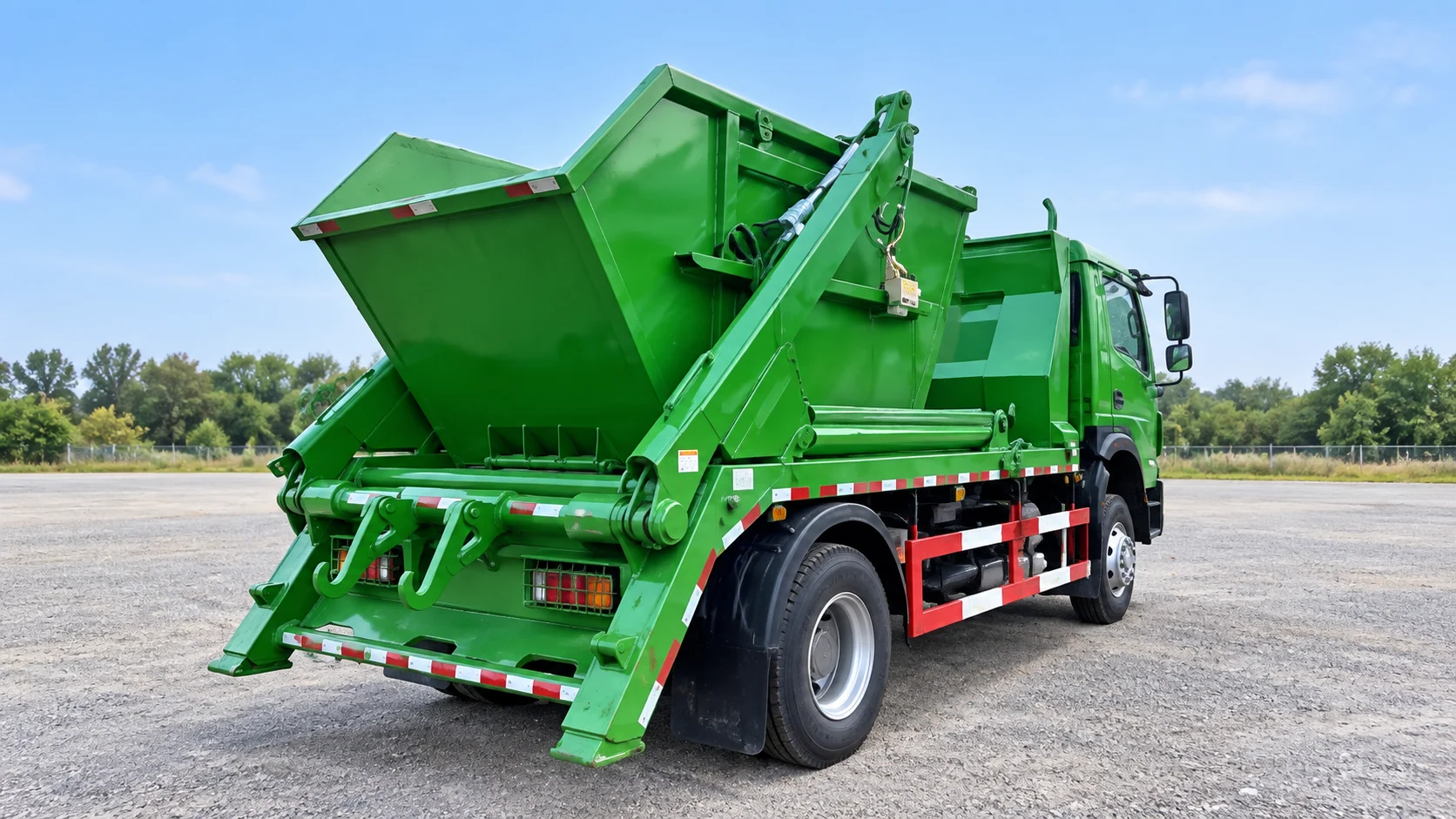

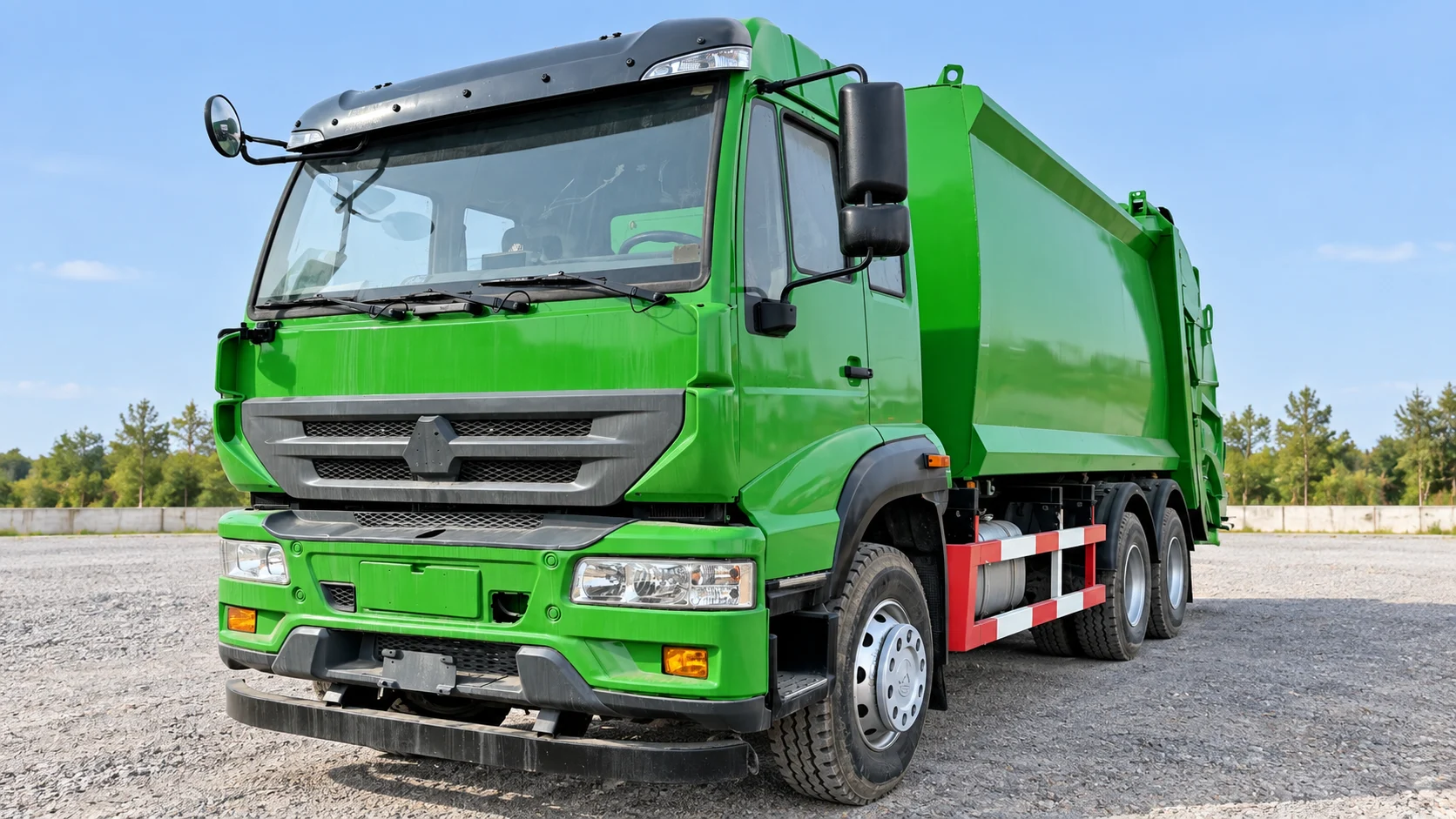

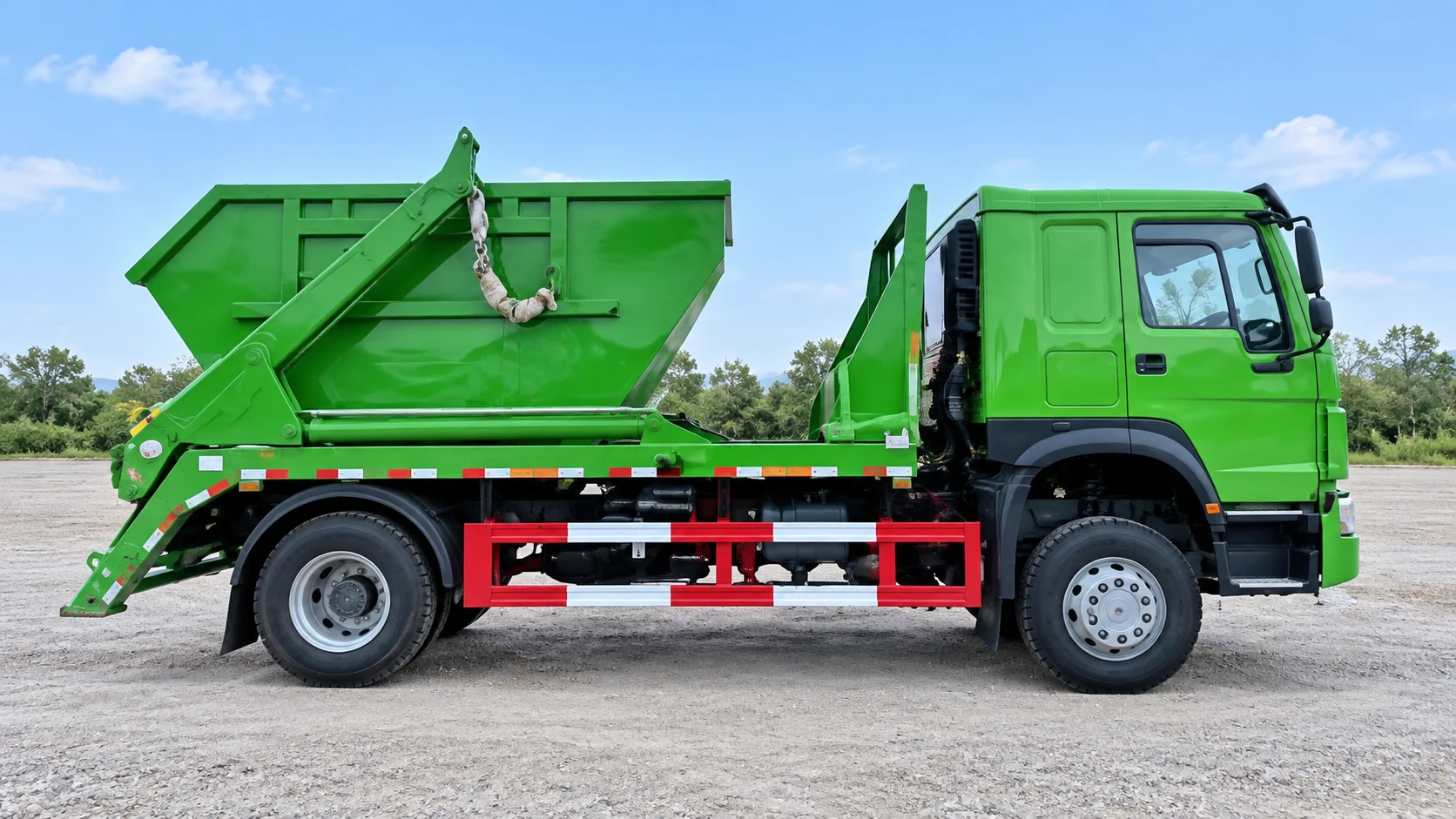

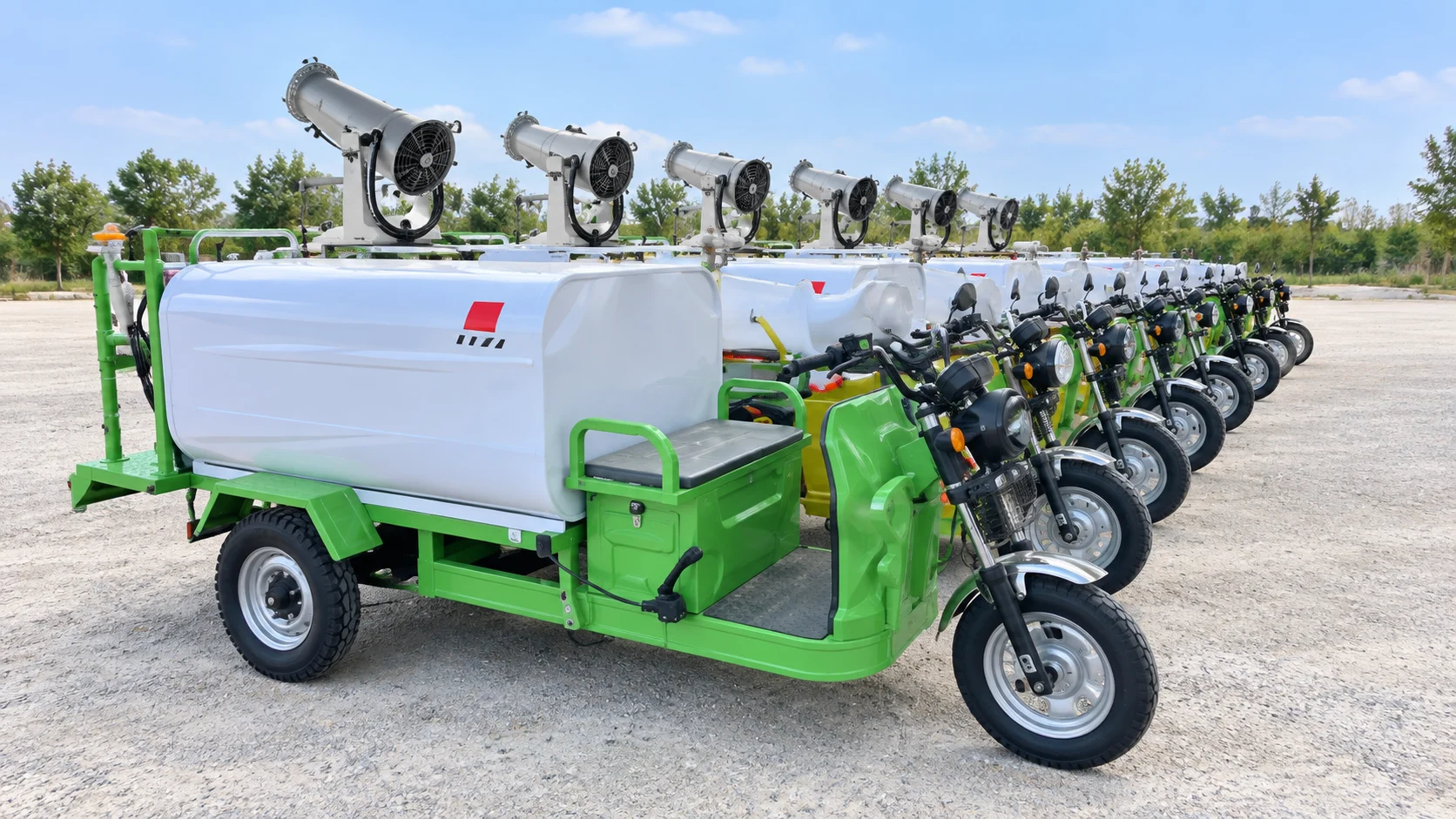

Reference photos may show different vehicles; match the photo and brochure configuration with sales. view-045

Configuration inquiry

Find the equipment and configuration for your work and transport requirements.

Configuration summary · LJN5180TXCEQ6 Vacuum Sweeper

Technical specifications

Brochure model

Overall dimensions: 7920 × 2500 × 3150 mm
Wheelbase options: 4500 / 4700 mm
Tyres / quantity: 10.00R20 / 6
Total mass: 18000 kg
Maximum tipping angle: ≥45°
Hopper capacity: 12 m³
Debris pickup efficiency: 99% (brochure claim)
Unloading: Rear-tipping automatic dumping
Maximum sweeping area: 20000–86000 m²/h
Dust filtration: 320 × 320 × 80012 precision filter cartridge (printed notation)
Emission standard: GB17691-2018 China VI
Engine model: B6.2NS6B230
Displacement: 9.73 L (printed; confirm with engine model)
Engine power: 166 kW / 1800 rpm
Auxiliary engine: 125 kW / 170 hp
Fuel: Diesel

Displacement and filter notation are reproduced from the brochure and require confirmation against the build sheet.

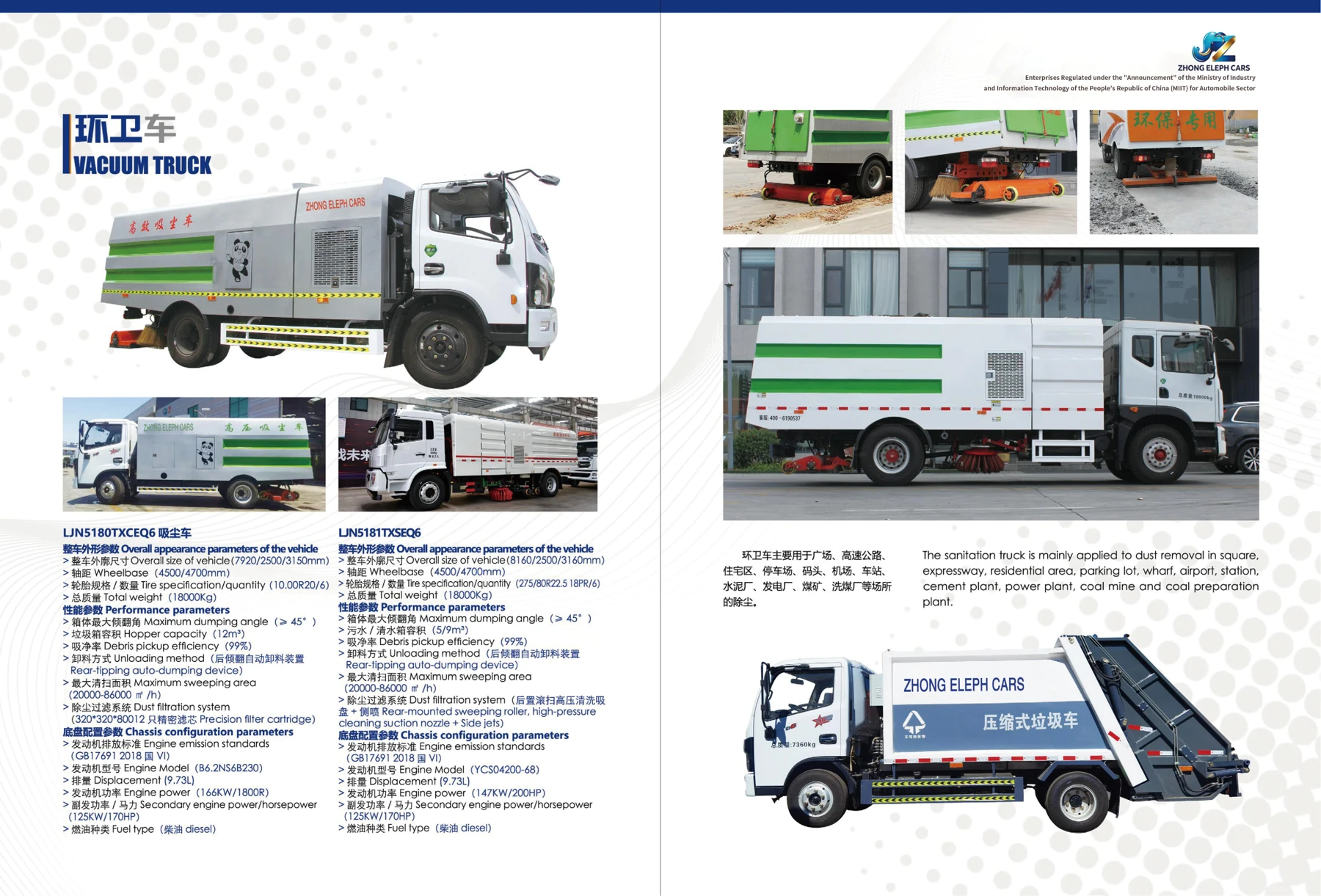

Published brochure options; final specifications are confirmed in the quotation.View brochure · P26 Full model details

Choose sanitation vehicles around the application, operating conditions and required configuration.

Match the brochure options to your destination, load and working conditions.

Discuss shipping methods, destination ports and required documents with sales.

Tell us what you need to prepare your equipment inquiry.
